GEZE MCRdrive * Modular, hermetically sealing sliding door system with air permeability certification

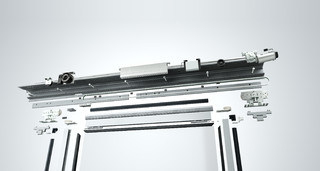

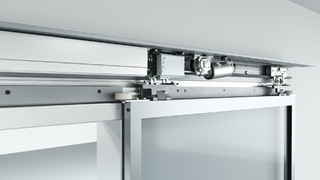

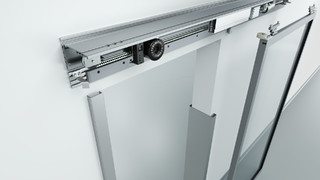

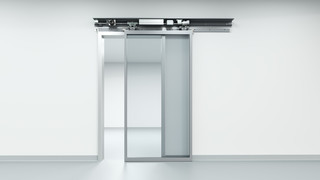

GEZE MCRdrive MCRdrive rendering, drive and leaf view
  • Consists of the GEZE MCRdrive drive unit and the GEZE MCRdrive leaf system
  • Maximum customer-specific design thanks to modular construction: drive unit and/or leaf system including profile and sealing system
  • Conforms to the noise protection requirement under EN 4109 of 37 dB and the air permeability class according to EN 1026 / EN 12207

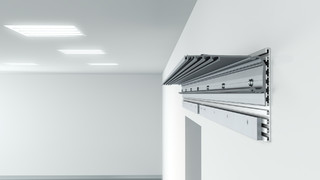

  • Sophisticated profile system for creating narrow contours and large glass surfaces

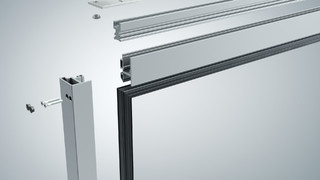

  • Universal profile system for glass, HPL or stainless steel door leaves

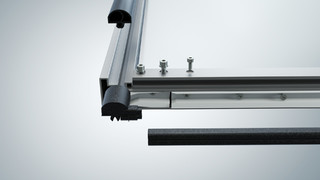

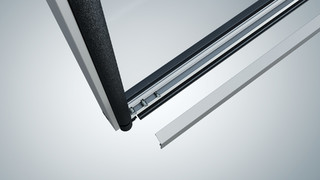

  • Full circumferential sealing system with sealing corners reduces the air permeability of the closed sliding door system
Show more
  • Hermetic seal by lowering and pressing the door leaf against the frame structure
  • Optimised opening widths for hospital operation (nurse opening, cleaning opening, bed opening)
  • Low ordering and installation complexity thanks to a simple product concept
  • Configuration possible via a configuration tool

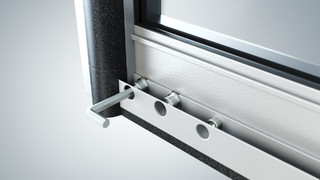

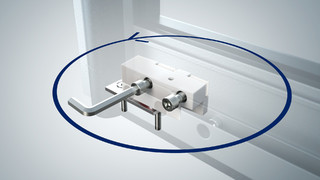

  • Simple and quick installation thanks to assembly tolerances, and the option of completing fine adjustments of the door leaf on site
  • Can be networked, and integrated into the building automation via open standard (BACnet)
  • Available glass and radiation protection with lead insert according to DIN 6834-1 can be implemented
Contact us

Application Areas

  • Single leaf sliding door systems
  • Interior doors for areas with hermetic air permeability requirements
  • Opening widths from 800 to 2500 mm possible

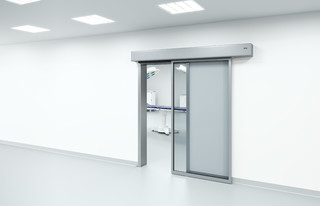

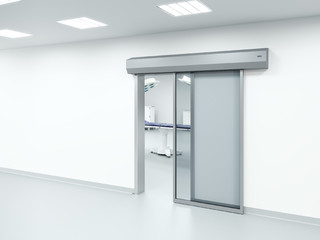

  • Operating rooms, quarantine rooms and intensive care areas in health care
  • Research institution laboratories
  • Pharmaceutical and food industry

Technical data

GEZE MCRdrive
For 1-leaf door systems Yes
Leaf weight (max.) 1-leaf 200 kg
Opening width 1-leaf 800 mm - 2500 mm
Clear passage height 2400 mm
Service temperature -15 - 50 °C
IP rating IP20
Standard conformity EN 16005, DIN EN ISO 13849: Performance Level D, DIN EN 12207:2016
