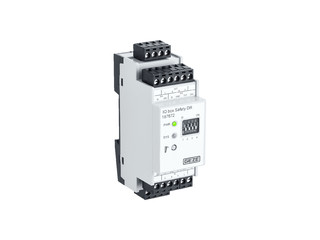

IQ box Safety * Safety module for protecting hazardous areas of power-operated windows
- Complies with the most stringent protection rating demands in respect of risk assessment for power-operated windows pursuant to the Machinery Directive (protection rating 4)
- TÜV tested functional safety in accordance with DIN EN 13849-1
- Four pre-set sensor inputs for safety edges and optical sensors
- Top hat rail housing with pluggable clamps for quick and easy wiring
- Integrated push button for closing windows manually during servicing
- Easy and quick commissioning due to pre-set standard parameters
IQ box Safety ensures that the automated ventilation windows close safely by protecting the main and secondary closing edges. If the sensors detect a foreign object, the window will be stopped or the closing motion will be reversed. Especially in primary and nursery schools, this kind of finger guard is necessary to design an automated ventilation system, since children are considered in need of special protection.
Application Areas
- Closing edge protection on automated power-operated windows with 24V IQ windowdrive units
- For connecting safety edges and non-contact sensors
- One IQ box Safety per window for up to four window drives and two locking drives
- Suitable for natural ventilation, smoke and heat extraction systems (SHEV)
- Suitable for all activation units (SHEV control panel, 24 V power supply, IQ box KNX, IQ gear)

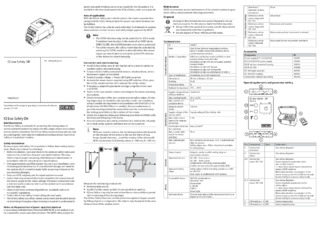

Technical data
| IQ box Safety | |
| Dimensions | 35 x 90 x 60 mm |
| Type of installation | Top hat rail mounting |
| Operating voltage | 24 V DC |
| Current consumption | 0.1 A |
| Cable dimensions (max.) | 2.5 mm² |
| Max. total length drives | 50 m |
| Max. cable length non-contact sensors | 10 m |
| Max. cable length safety edges | 200 m |
| Inputs for sensors | 4 Stk. |
| Software drives | The software version of the drives (IQ windowdrive) must be V3.2 or higher or V1.0 for F1200 +. |
| Service temperature | -5 - 70 °C |
| IP rating | IP20 |
| protection rating | III |
| Approved safety edges | 4,5k - 22k Ohm |
